The batteries are LiFePO4 lithium phosphate batteries. LiFePO4 is the safest and longest-lasting lithium battery with 20 times the cycle life and 5 times the float/calendar life of lead-acid batteries, helping to minimize replacement costs and lower the total cost of ownership. Built-in BMS provides charge and discharge cut-off protection to ensure your safety and extend the life of our products. Anern provides solar battery management systems for homes and businesses.
Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 30% of the weight of a comparable lead acid battery. A " drop in" replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20℃~60℃
Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation

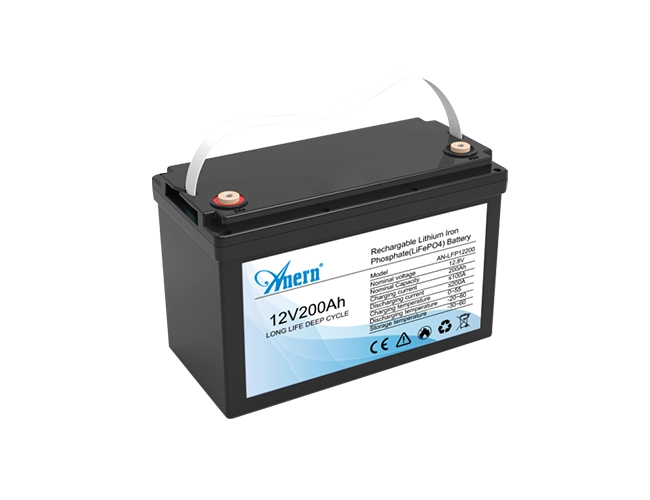

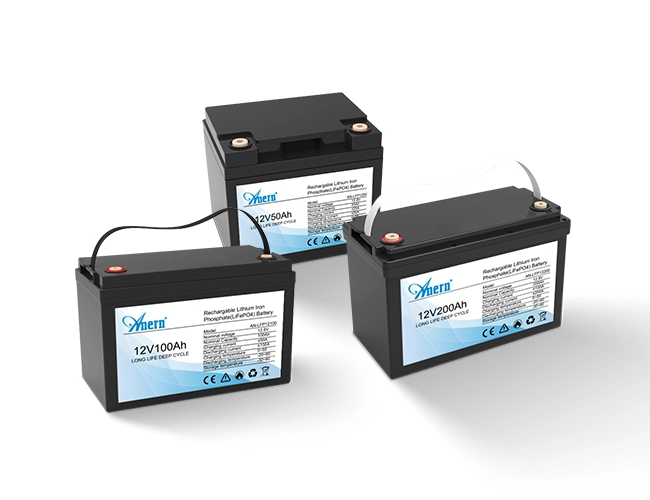

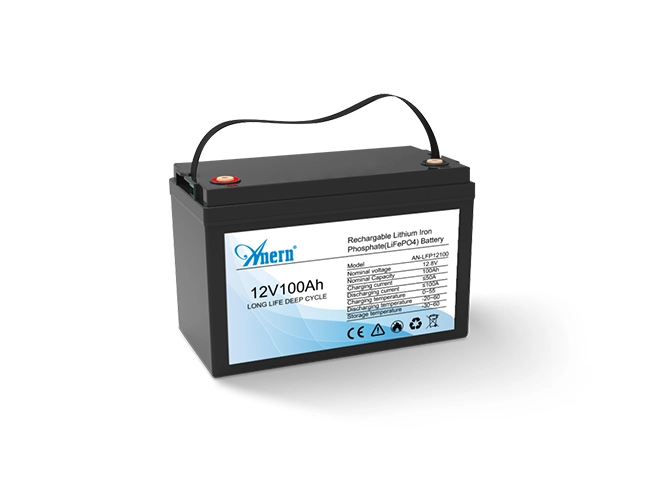

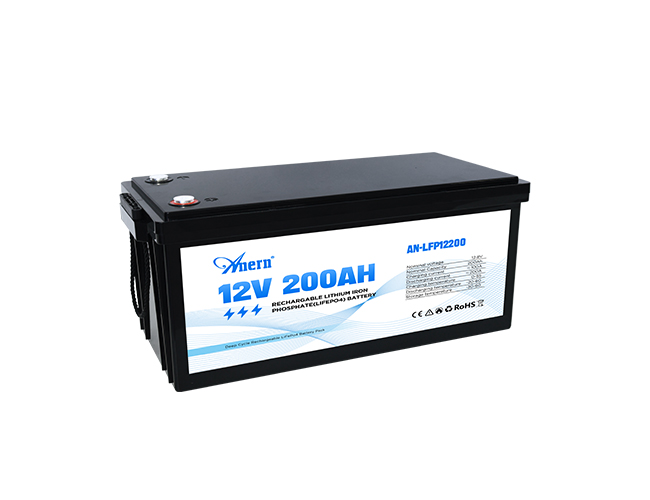

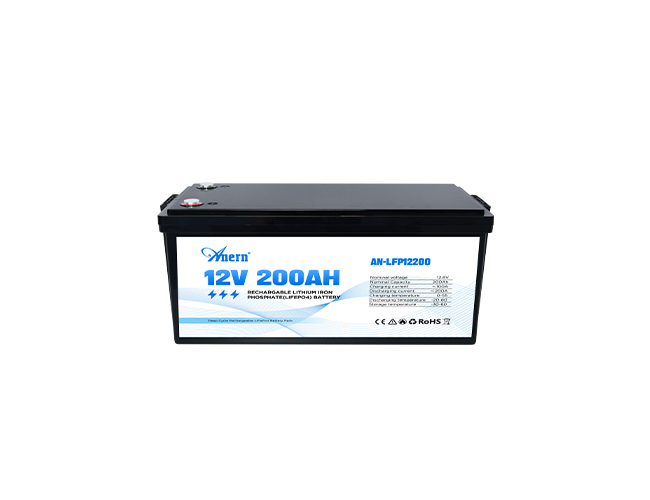

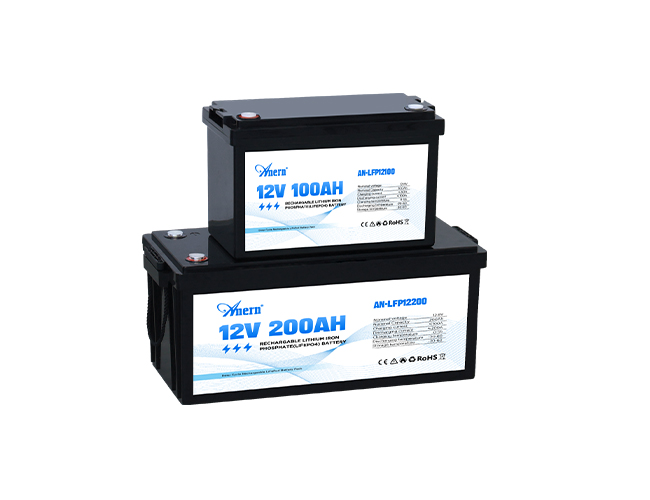

Model | AN-LFP1250 | AN-LFP12100 | AN-LFP12200 |
Battery Type | LiFePO4 | ||
Typical Capacity(AH) | 50AH | 100AH | 200AH |
Typical Voltage(V) | 12.8V | ||
Energy storage(Kwh) | 640WH | 1280WH | 2560WH |
Voltage Working Range(V) | 10-14.6V | ||
Working Temperature(°C) | Charge: 0-+55°C Discharge: -20-+60°C | ||
Storage Temperature(°C) | -20-+40°C | ||
Max. Charge Current(A) | 50A | 100A | 200A |
Max. Discharge Current(A) | 50A | 100A | 200A |
SOC Accuracy | <8% | ||
Dimension(mm) | 225*147*183mm | 342*213*227mm | 522*240*218mm |
Weight(kg) | 5.5kg | 15kg | 30kg |
IP Grade | IP54 | ||
Certifications | CE, ROHS, UN38.3, MSDS | ||
