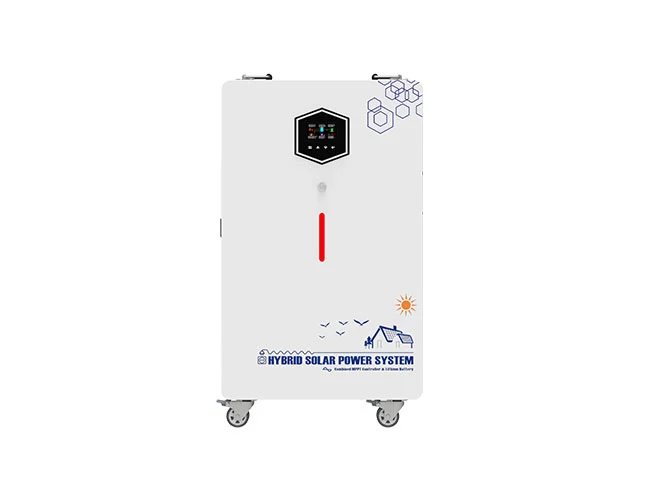

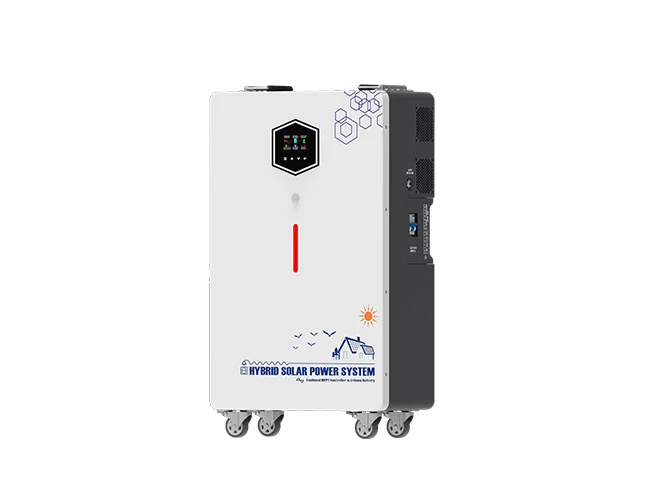

All In One Portable Solar Power Generator Station(MPSG-E)

Anern latest power station 1000w 3600w 6200w portable solar generator‘s comprehensive LCD display offers user-configurable, easy-accessible button operation. Built-in high-frequency pure sine wave solar hybrid inverter、 MPPT controller and lithium battery, maximum 48V 6200W. Plug and play portable unit with dual AC outputs. Intelligent battery charging design maximizes battery life.

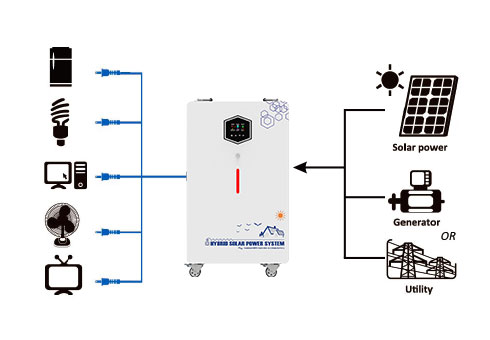

This solar generator integrates a lithium battery pack, MPPT solar charge controller, and an inverter into a compact system to turn solar energy into an electrical current. It is an extremely cost-effective power generation system.


Key Features All In One Portable Solar Power Generator Station

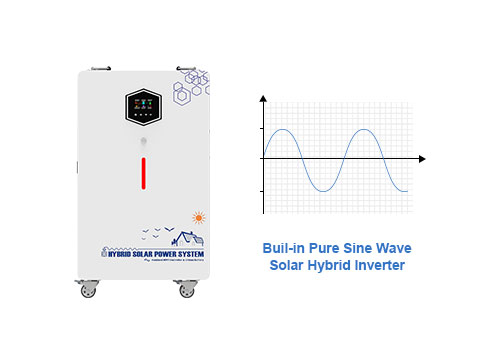

◆ Pure Sine Wave Solar Hybrid Inverter;

◆ Bulit-in MPPT solar controller, max charge current 120A;

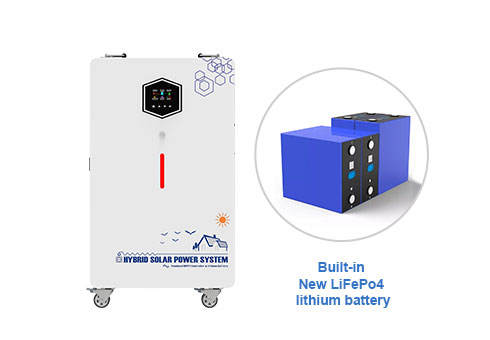

◆ Built-in New LiFePo4 lithium battery;

◆ Wide PV input voltage range (20-150VDC/6--450VDC)

◆ With function of Lithium battery automatic activation by PV(3600&6200);

◆ Smart battery charge design to maximize battery lifespan;

◆ RGB indicator light;

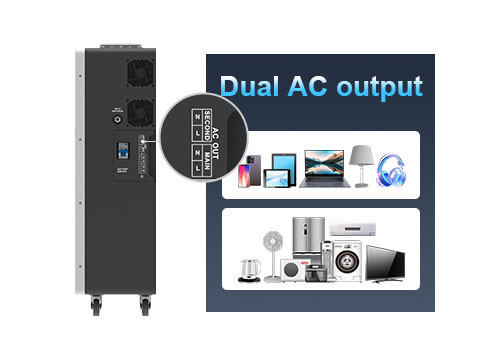

◆ Dual AC output;

Power Generator StationAll In One Portable Solar Power Generator Station

All In One Portable Solar Power Generator StationPortable Solar Power Generator Station

The Specification of All In One Portable Solar Power Generator Station


Model

MPSG-E1000

MPSG-E3600

MPSG-E6200

Battery Voltage

12.8V

25.6V

48V

Inverter

RATED POWER

1000W

3600W

6200W

Input Voltage Range

220/230/240VAC

Input Frequency

50/60Hz

Output Voltage

195.5-253VAC

Output Frequency

49-51±1Hz / 59-61±1Hz

Output Wave

Pure Sine Wave

Specification Of Built-in Lithium Battery

1280WH

2560WH

4800WH

Solar Input

Max. PV Power

550W

6200W

6500W

Range Of Charging Voltage

20-150VDC

60-450VDC

60-450VDC

Rated Charge Current

80A

120A

120A

PHYSICAL

Heat Dissipation/Cooling

Temperature control by intelligent exhaust fan

Display

Digital LCD

Electricity Charging

Yes

External Size:W*D*H(mm)

321*491*140.5mm

441*701*231mm

441*701*231mm

Package Size:W*D*H(mm)

570*390*230mm

810*540*340mm

810*540*340mm
