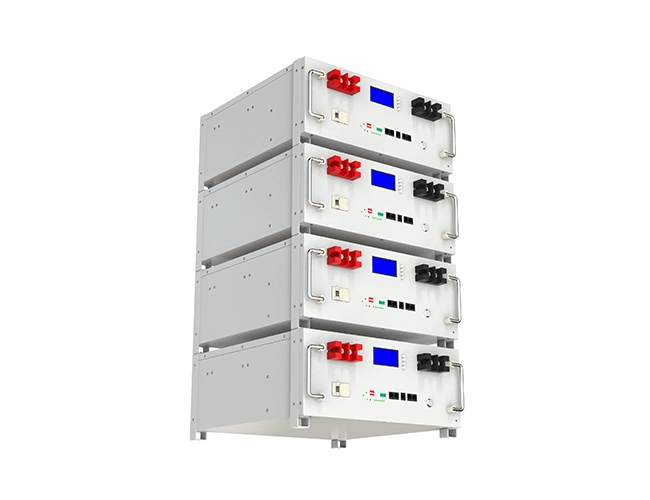

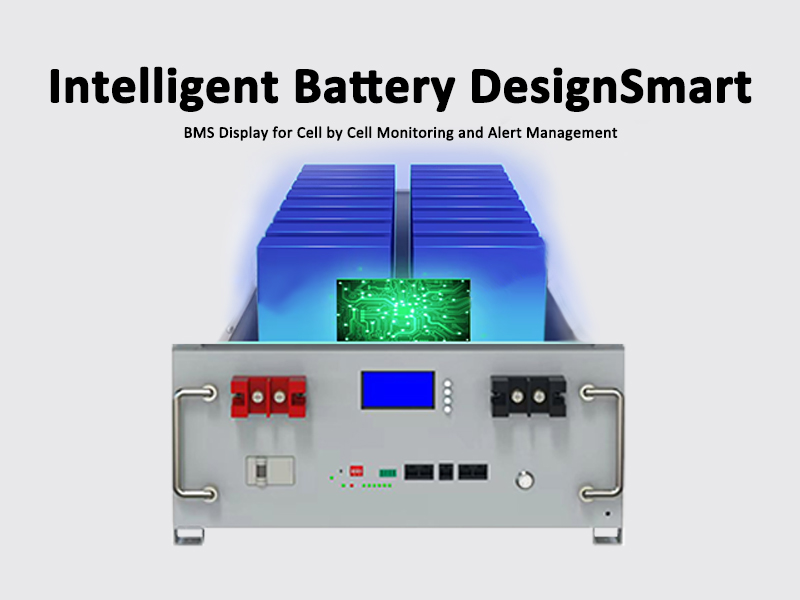

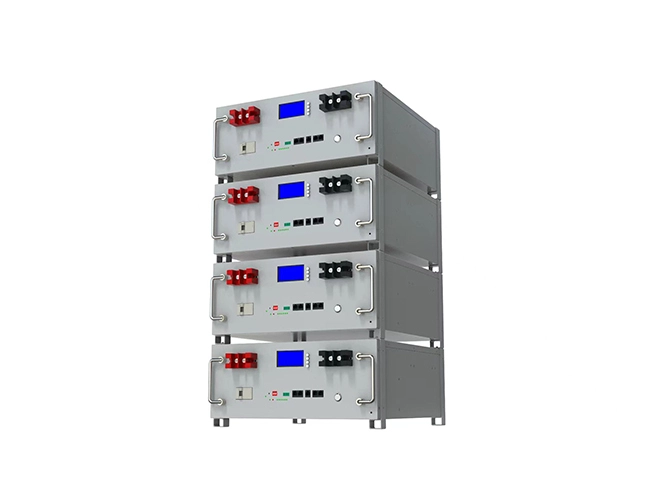

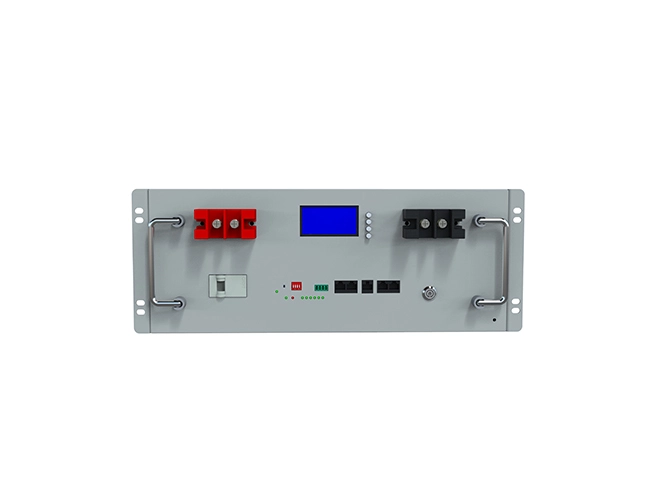

This LPB-R series server rack mount lifepo4 battery adopts highly reliable Lithium battery cells for long cycle life and consistent performances. The battery packs use an advanced Battery Management System (BMS) to enhance system performance, prolong life and warrant safety. It is modular and user-friendly, making it ideal for various applications, including data centers, telecom rooms, and whole-home backup systems.
◆ Modular design, small size and lightweight;
◆ One key switch machine, the operation is more convenient;
◆ Suitable for long-term charge and discharge cycles;
◆ Adopt multi-level energy consumption management;

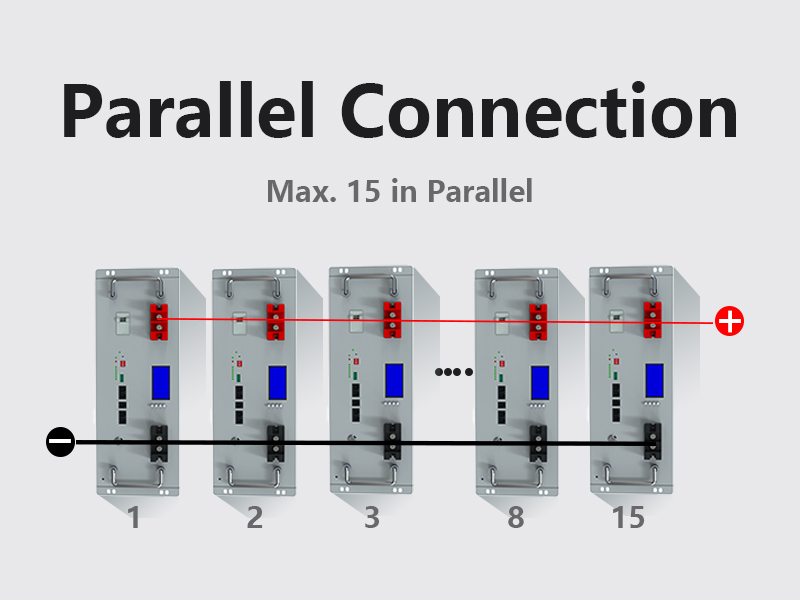

◆ Multiple parallel machines, automatic address acquisition without manual operation;
◆ Support high-current charging and discharging;
◆ Front operation and front wiring are convenient for installation and maintenance;
◆ Adopt high-performance processors, international brand devices, and high reliability;
◆ Safety certification: CE, ROHS, UN38.3, MSDS, etc.
| Model | AN-LPB-R-24200 | AN-LPB-R-48100 | AN-LPB-R-48200 | |
| Battery Type | ||||
| Typical Capacity(AH) | 200AH | 100AH | 200AH | |
| Typical Voltage(V) | 25.6V | 48V | 48V | |
| Energy storage(Kwh) | 5.12Kwh | 4.8Kwh | 9.6Kwh | |
| Voltage Working Range(V) | 22.4-29.2V | 42-54.8V | 42-54.8V | |
| Working Temperature(°C) | Charge: 0-+55°C Discharge: -20-+60°C | |||
| Storage Temperature(°C) | -20-+40°C | |||
| Standard Charge Current(A) | 0.5C | |||
| Max. Charge Current(A) | 100A | 50A | 100A | |
| Max. Discharge Current(A) | 200A | 100A | 200A | |
| SOC Accuracy | <8% | |||
| Dimension(mm) | 442*500*155mm | 442*500*155mm | 442*680*222mm | |
| IP Grade | IP54 | |||
| Cooling | Nature | |||
| Certifications | CE, ROHS, UN38.3, MSDS | |||
