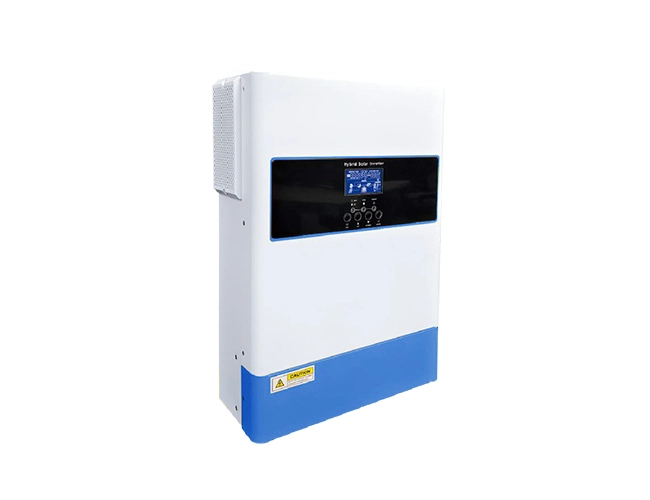

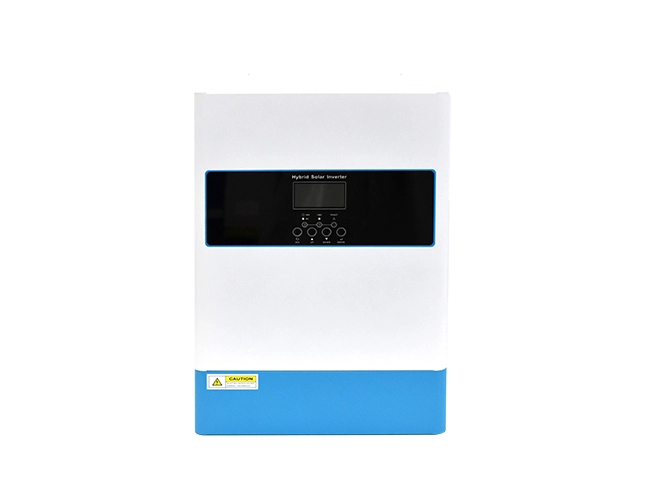

The AN-SCI02-PA Solar Hybrid Inverter is a multi-functional inverter, combining the functions of an inverter solar charger and battery charger to offer uninterruptible power support in a portable size. This solar charger inverter is a versatile and high-performance solution for your energy needs, featuring advanced functionality and robust design.
This parallel hybrid solar inverter is ideal for households and businesses seeking a reliable, customizable, and eco-friendly power solution.
Supports parallel operation of up to 12 units, providing scalable solutions for various energy demands.

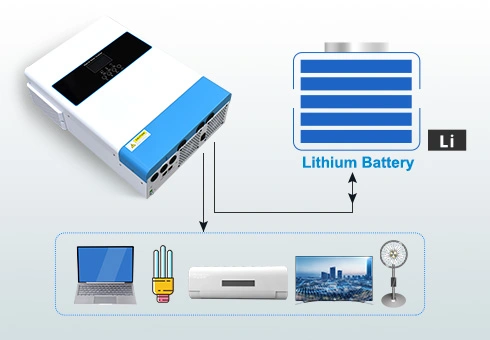

Fully compatible with LiFePO4 batteries, ensuring safety, long lifespan, and high energy efficiency.
Adjustable input voltage range via the LCD display, enabling optimized use for both home appliances and personal computers, depending on your specific requirements.

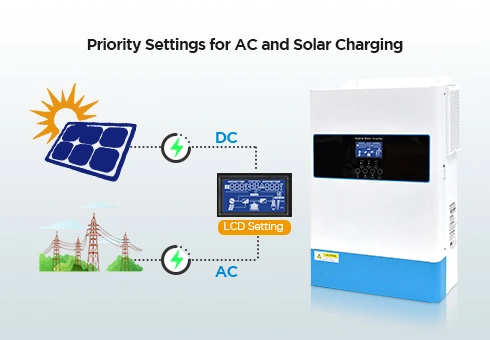

Allows users to configure AC or Solar Charging priority directly through the LCD panel, maximizing energy utilization efficiency based on your preferences.
◆ Compatible work with lifepo4 Battery
◆ Configurable input voltage range for home appliances and personal computers via LCD setting
◆ Configurable AC Solar Charger priority via LCD setting
◆ Compatible with mains voltage or generator power
◆ Auto restart while AC is recovering
◆ Overload/ Over temperature/ short circuit protection
◆ Smart batterγcharger design for optimized battery performance
◆ Communicate with WIFI

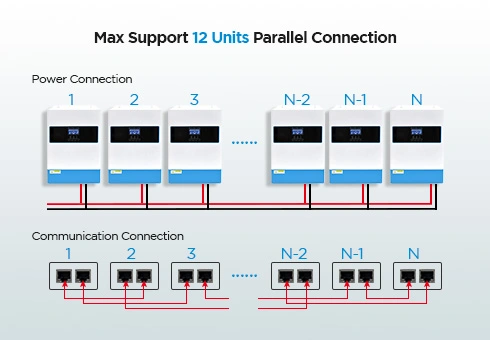

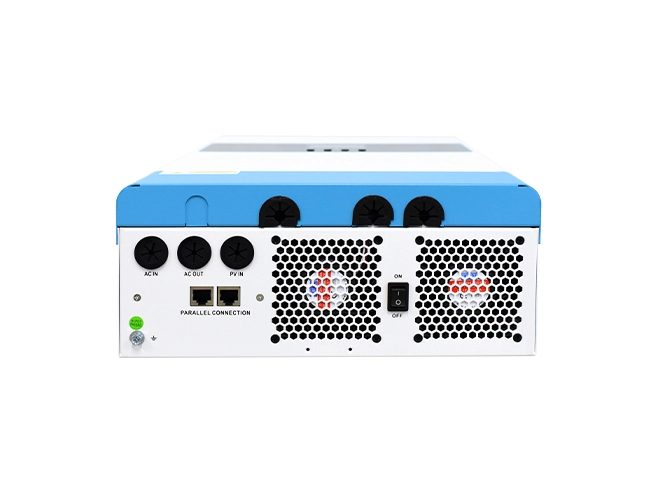

◆ Can be used in parallel, support maximum 12pcs in parallel connection
Model | SCI02-PA-6200 |
RATED POWER | 6200W |
INPUT | |
Voltage | 230 VAC |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) |
90-280 VAC (For Home Appliances) | |
Frequency Range | 50 Hz/60 Hz (Auto sensing) |
OUTPUT | |
AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
Surge Power | 12400VA |
Efficiency (Peak) PV to INV. | 97% |
Efficiency (Peak) Battery to INV. | 94% |
Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
Waveform | Pure sine wave |
BATTERY & AC CHARGER | |
Battery Voltage | 48 VDC |
Floating Charge Voltage | 54 VDC |
Overcharge Protection | 63 VDC |
SOLAR CHARGER | |
Maximum PV Array Power | 6500 W |
MPPT Range @ Operating Voltage | 120 ~ 450 VDC |
Maximum PV Array Open Circuit Voltage | 500 VDC |
Maximum Charging Current(Solar) | 120A |
Maximum Charging Current(AC) | 80A |
Maximum Efficiency | 98% |
PHYSICAL | |
Dimension, D x W x H (mm) | 450*300*130 |
Net Weight (kgs) | 12 |
Communication interface | WIFI |
OPERATING ENVIRONMENT | |
Humidity | 5% to 95% Relative Humidity(Non-condensing) |
Operating Temperature | 0°C - 55°C |
Storage Temperature | –15°C - 60°C |
