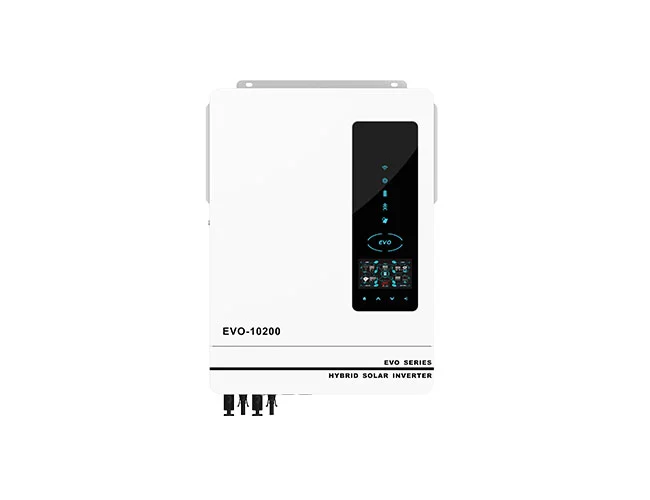

7KW 8KW 10KW Off Grid Hybrid Solar Inverter

SCI-EVO series 10kw single phase off-grid solar inverter is a pure sine wave hybrid solar inverter that can self-consumption and feed into the grid. With dual PV input and dual AC output and a newly developed color LCD display screen, it supports running without a battery. This hybrid off grid inverter 10kw is a great solar energy backup power solution for homes and small businesses.


The Details of 7200W 8200W 10200W Hybrid Inverter with inbuilt MPPT Controller

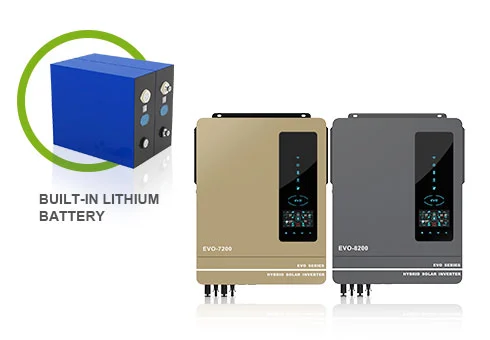

Built-in Lithium battery automatic activation, can activate the dormant lithium battery by charging.

Built-in Lithium battery automatic activation, can activate the dormant lithium battery by charging.

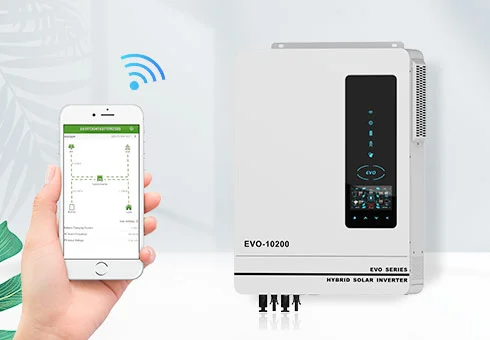

WIFI function to remotely monitor the real-time running status of the product.

WIFI function to remotely monitor the real-time running status of the product.

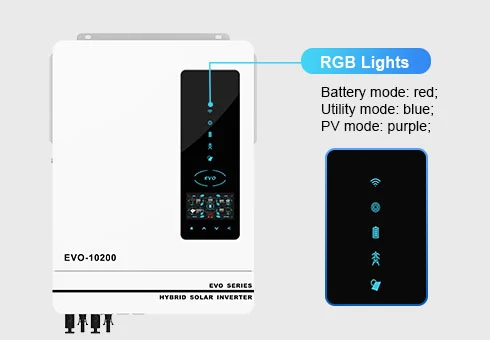

RGB lighting for different working modes: Battery mode, Utility mode and PV mode.

RGB lighting for different working modes: Battery mode, Utility mode and PV mode.

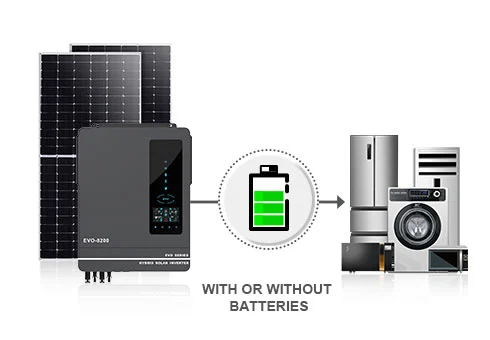

The inverter can run without batteries, which helps reduce the cost of solar power systems.

The inverter can run without batteries, which helps reduce the cost of solar power systems.


Feature of Hybrid Off Grid Inverter 10KW 8KW 7KW

  • Pure sine wave solar inverter

  • Self-consumption and feed-in to the grid.

  • Inverter running without battery.

  • One-key restoration to factory settings.

  • Built-in lithium battery automatic activation.

  • Built-in 160A MPPT solar controller (for 8.2KW,10.2KW), 140A(for 7.2KW)

  • High PV input voltage range(90-450VDC).

  • Built-in anti-dusk kit for harsh environments.

  • Smart battery charge design to optimize battery life.

  • WIFI available for IOS and Android


Specification of Hybrid Off Grid Inverter 10KW 8KW 7KW

Model

SCI-EVO-7200

SCI-EVO-8200

SCI-EVO-10200

RATED POWER

7200W

8200W

10200W

Maximum PV Input Power

7200W

8200W

10200W

GRID-TIED OPERATION

PV INPUT (DC)

Nominal DC Voltage/Maximum DC Voltage

360VDC/500VDC

Start-up Voltage/Initial Feeding Voltage

90VDC/120VDC

MPPT DC Voltage Range

90-450VDC

Number of MPPT Trackers/Maximum Input Current

1/27A

2/18A

GRID OUTPUT (AC)

Nominal AC Output Voltage

220/230/240VAC

AC Output Voltage Range

195.5-253VAC

Nominal AC Output Current

31.3A

35.6A

44.3A

Power Factor

>0.99

Feed-in Grid Frequency Range

49-51±1Hz / 59-61±1Hz

EFFICIENCY

Maximum Conversion Efficiency (Solar to AC)

98%

TWO LOADS OUTPUT POWER

Full Load

7200W

8200W

10200W

Maximum Main Load

7200W

8200W

10200W

Maximum Second Load (battery mode)

2400W

2733W

3400W

Main Load Cut Off Voltage

44VDC

44VDC

44VDC

Main Load Return Voltage

48VDC

48VDC

48VDC

OFF-GRID OPERATION

AC Start-up Voltage/Auto Restart Voltage

120-140VAC/180VAC

Acceptable AC Input Voltage Range

90-280VAC or 170-280VAC

Maximum AC Input Current

40A

40A

50A

Nominal Operating Frequency

50/60Hz

Surge Power

14400W

16400W

20400W

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

220/230/240VAC

Output Waveform

Pure sine wave

Efficiency (DC to AC)

94%

BATTERY & CHARGER

Nominal DC Voltage

48VDC

48VDC

48VDC

Maximum Charging Current(Solar to AC)

140A

160A

160A

Maximum AC Charging Current

120A

140A

160A

GENERAL

Dimension, D x W x H (mm)

500*390*130mm

500*390*130mm

530*390*130mm

Net Weight (kgs)

14.2KG

14.2KG

14.5KG

Communication interface

WIFI

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operating Temperature

–10°C - 50°C

Storage Temperature

–15°C - 60°C


Difference between Solar Converter and Solar Inverter

The terms solar converter and solar inverter are often used interchangeably, but they can refer to different components or functions within a solar power system.

What is a solar converter? A solar converter is a crucial component in solar power systems. Its primary function is to convert the direct current (DC) electricity generated by solar panels into alternating current (AC) electricity, which is the standard form of electricity used by most household appliances and the electrical grid.

  • The solar inverter specifically converts DC to AC, while the solar converter can refer to any device that converts electrical energy from one form to another, including DC-DC converters, MPPTs, and charge controllers.

  • The solar inverter is essential for grid-tied systems and for using AC appliances, and the solar converter is used for various purposes within a solar power system, such as voltage regulation, optimization, and battery charging.

  • The solar inverter is a well-defined term with specific types and functions, while the solar converter can encompass multiple types of conversion devices.
