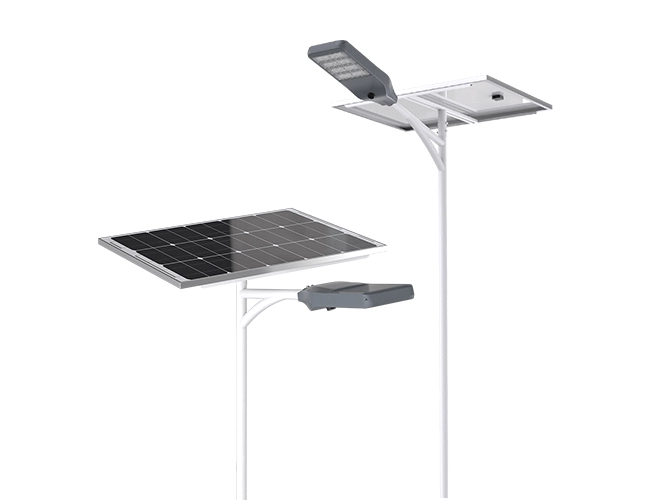

AN-SSL-T series all in two solar panel street light is the newest cost-effective semi split type solar street lamp designed by Anern. Adopt lifepo4 lithium battery pack, high lumen 3030SMD light source, larger battery box and battery voltage can be customized 3.2V&12.8V.

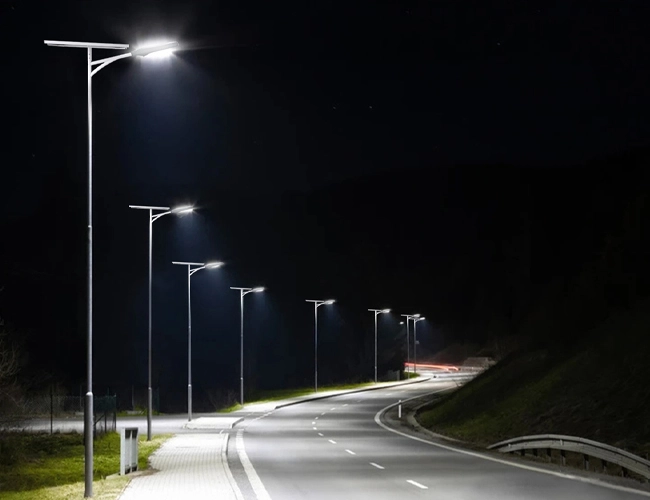

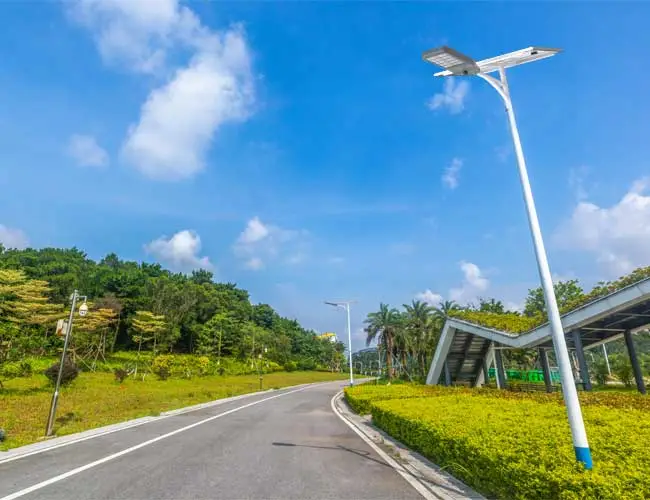

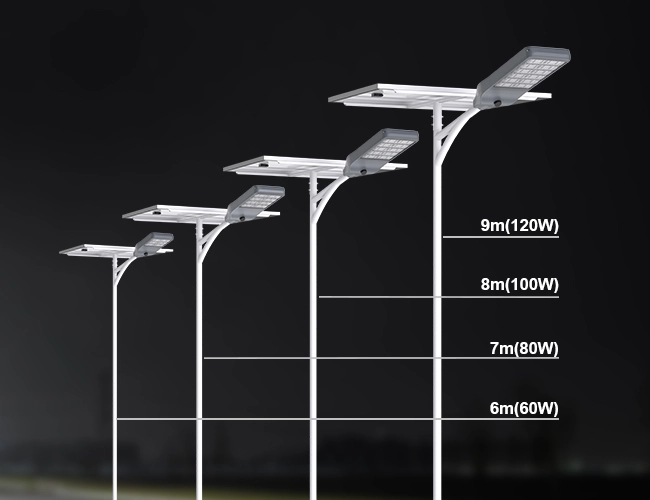

AN-SSL-T 60W to 120W solar led street light with pole is widely applicable to roads, expressways, parks, plazas, villas and other strong wind rural mountain areas. Good for 6-9M poles, one-step plug-in for wiring connection, easy to install and maintain.

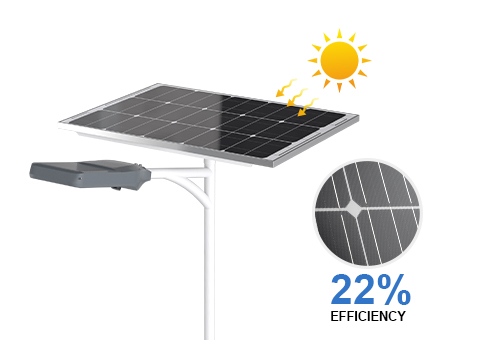

Monocrystalline solar panels with 18%-20% high-efficiency conversion rate, which can also be charged in low light environments, smart charging during the day and smart lights at night.

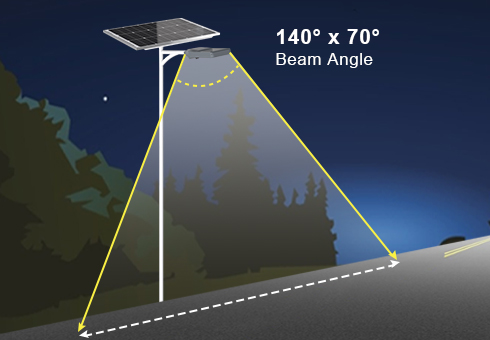

Only one step plug-in for wiring connection, easy to install and maintain. 140° wide lighting angle covering wider road area.

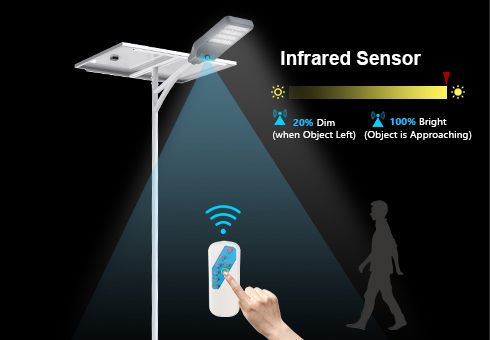

Infrared sensor adopted for smart lighting control. Timing and automatic turn on/off by the Intelligent remote control.
High-capacity lifep04 lithium battery, low voltage protection, long service life.

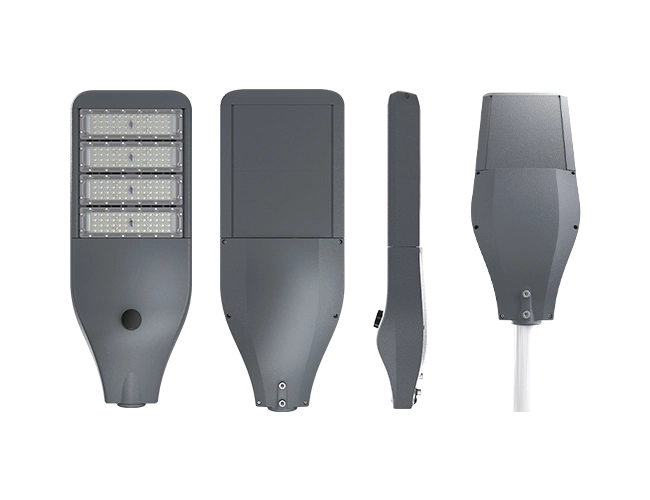

Adjustable angle LED modules, suitable for different roads

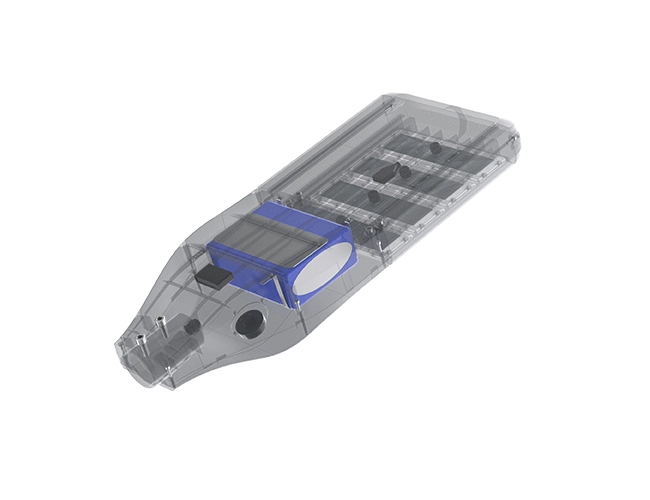

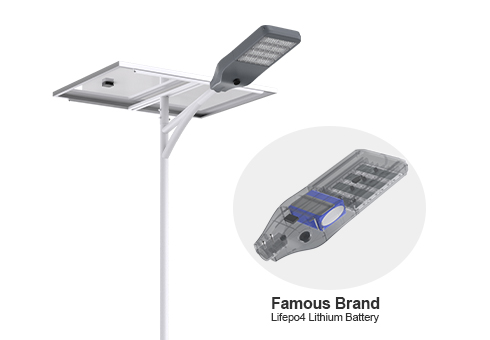

Big battery box, build-in LifePo4 battery
IP66 Waterproof for outdoor use
Tell us the room length, width, height and usage. We have an engineering team to respond to the DIALUX simulations for light quantity calculation and effects. ies files are available upon request.

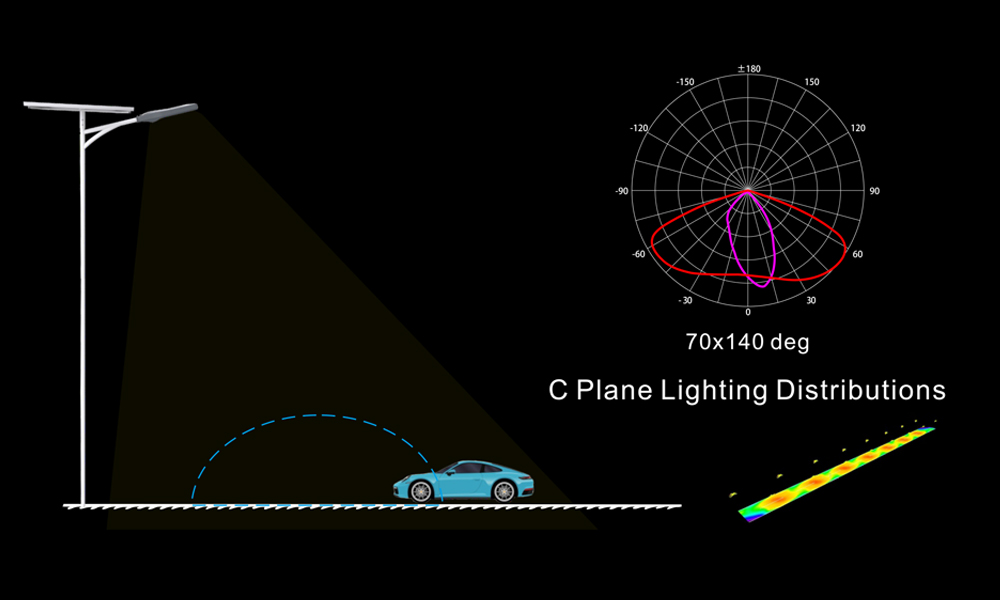

5.jpg "The-Specification-of-All-In-Two-Solar-Street-Light-(SSL-I)5.jpg")

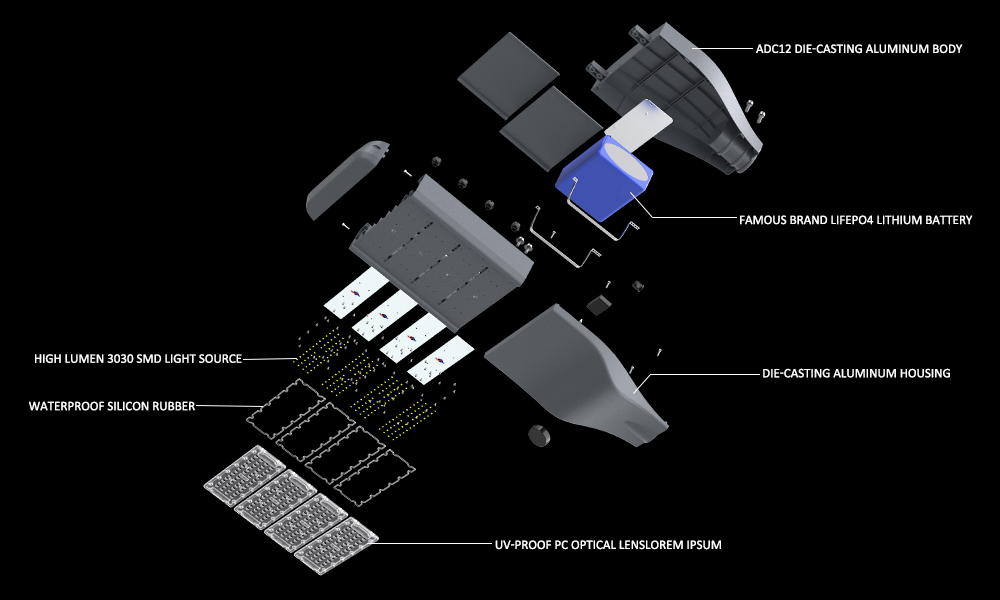

4.jpg "The-Specification-of-All-In-Two-Solar-Street-Light-(SSL-I)4.jpg")
Model No. | 60W(3 Modules) | 80W(4 Modules) | 100W(5 Modules) | 120W(6 Modules) | |
In put Voltage | 18V | 18V | 18V | 18V | |
Battery Capacity | 538WH | 692WH | 768WH | 922WH | |
SolarPanel | 80W | 100W | 150W | 200W | |
Solar Panel Size(mm) | 670*820*30mm | 670*1020*3mm | 670*1480*35mm | 992*1330*35mm | |
Efficacy(lmZw) | 160LM/W | 160LM/W | 160LM/W | 160LM/W | |
CCT | 7000-8000K | 7000-8000K | 7000-8000K | 7000-8000K | |
CRI | 70 | 70 | 70 | 70 | |
Ambient Temperature | -10-45℃ | -10-45℃ | -10-45℃ | -10-45℃ | |
LED Qty | 150 | 200 | 250 | 300 | |
LED Type | 3030 | 3030 | 3030 | 3030 | |
Luminaire Size(mm) | 690*290*130mm | 760*290*130mm | 840*290*130MM | 920*290*130MM | |
Body Material | Aluminum | Aluminum | Aluminum | Aluminum | |
IP Grade | IP65 | IP65 | IP65 | IP65 | |
Warranty | 3Years | 3Years | 3Years | 3Years | |
Save money - with manufacturer direct pricing
Save time - with experienced team to get project done
Lead the industry - with the most cutting-edge products
