Anern UPS storage system lifepo4 lithium ion ESS battery bank pack is a dynamic and scalable high-voltage energy storage solution for commercial and industrial applications, which can customize the voltage, capacity and power output for the project-specific performance. With the advantage of extended battery life, high temperatures tolerance, high energy density, real time monitoring system, high number of cycles, high rate performance and low capacity performance.

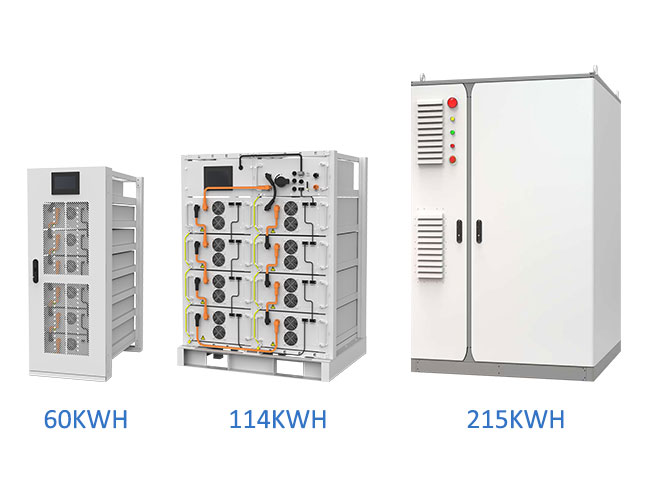

This high voltage liFePO4 battery ESS is designed for large-scale solar energy storage, offering high capacity, long lifespan, and superior safety. With modular configurations of 60KWh, 114KWh, and 214KWh, this system is ideal for residential, commercial, and industrial solar applications, ensuring stable and efficient energy management.

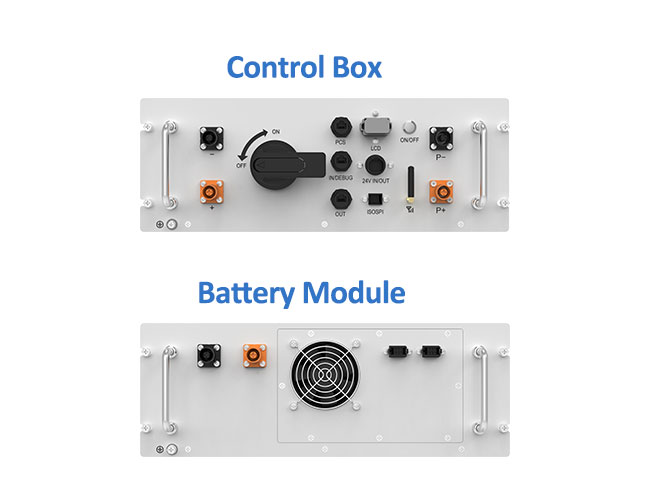

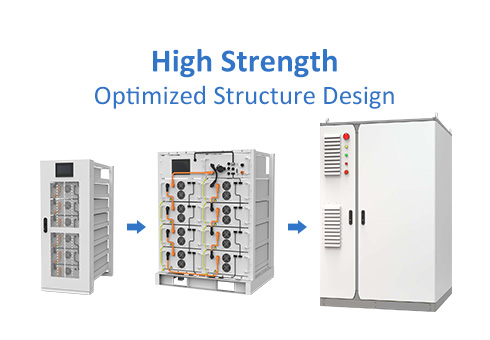

.jpg "Modular design, easy for installation and maintenance.")
Featuring a modular design for easy installation and maintenance. The system supports expandable capacity by connecting multiple battery packs, making it ideal for meeting growing energy demands.

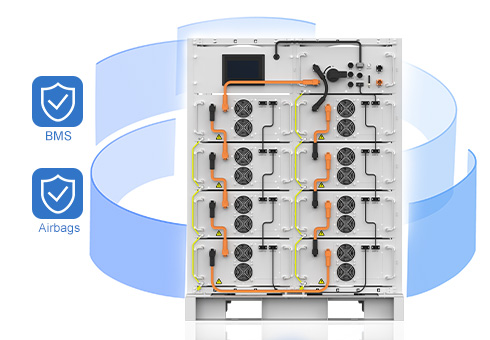

.jpg "Intelligent BMS management system and airbags to ensure safe and reliable operation of the system.")
Equipped with an advanced BMS (Battery Management System) and built-in safety airbags to ensure safe, stable, and reliable operation. The BMS provides comprehensive protection, including overcharge/over-discharge prevention, temperature regulation, and precise cell balancing for optimal battery performance.
Data centers (e.g., co-location, control rooms);
Telecom (e.g. fix and mobile operator);
Healthcare (e.g., hospitals and medical centers);
Building infrastructures (e.g., financial institutions, education centers);
Transportation (e.g., railway and airport infrastructure);
Manufacturing (e.g., food & beverage industry);
Energy storage (e.g., photovoltaic, wind and cogeneration applications, smart grid, and off-grid applications)
.jpg "The UPS Storage System Lifepo4 Lithium Battery Pack ESS Proposal is Suitable for")

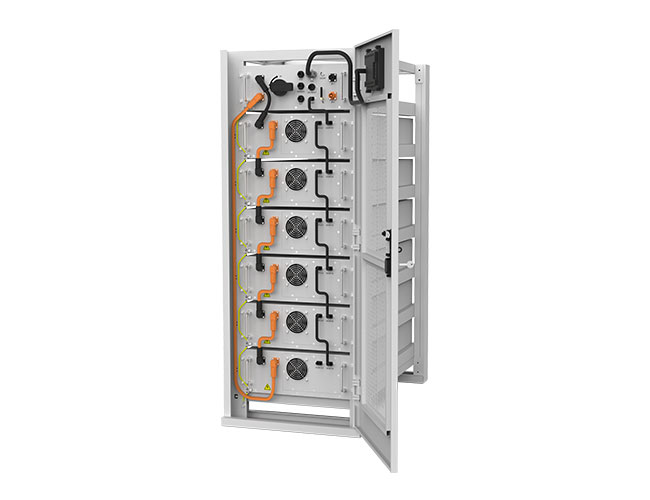

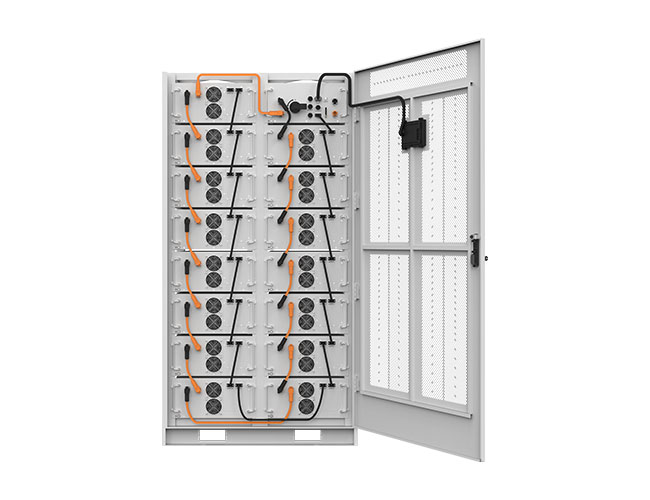

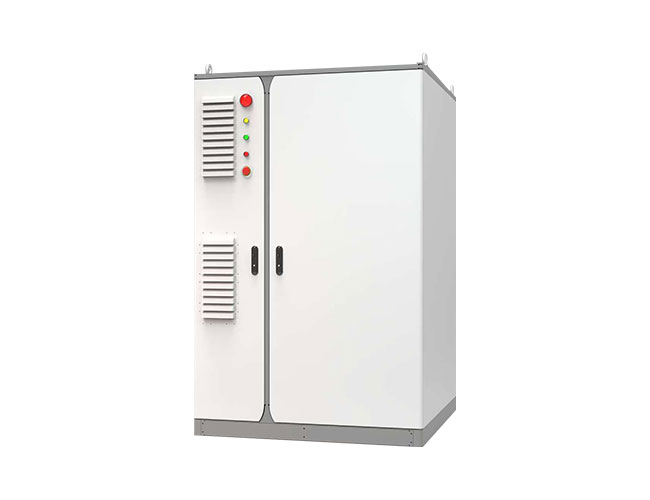

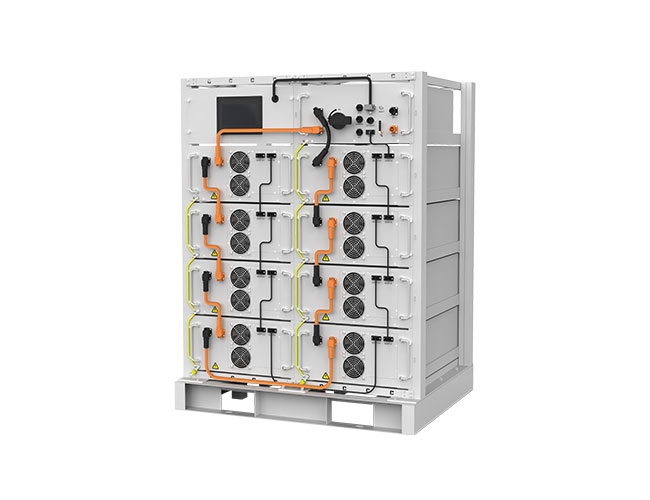

Specifications | AN-ESS-60KWH | AN-ESS-114KWH | AN-ESS-215KWH |
Battery module(Wh/V) | 10.24kWh, 102.4V | 14.336kWh, 51.2V | 14.336kWh, 51.2V |
Number of modules | 6 | 8 | 15 |
Cell technology | LFP (LiFePO4) | ||
Battery usable energy | 61.44kWh | 114.68kWh | 215.04kWh |
Nominal voltage | 614.4V | 409.6V | 768V |
Operating voltage | 537.6-700.8V | 358.4-467.2V | 672-876V |
Standard charging & discharging | 50A/0.5C | 168A/0.6C | 140A/0.5C |
Maximum continuous charging & discharging | 100A/1C | 168A/0.6C | 140A/0.5C |
Display | SOC status indication, Alarm indication, LCD display | ||
Communication | CAN / RS485 | ||
Dimension (W*D*H)(mm) | 584(W)*1094(D)*1500(H) mm | 1060(W)*845(D)*1385(H) mm | 1120(W)*845(D)*2100(H) mm |
Weight Approximate (kg) | 670kg | 965kg | 1920kg |
Discharging temperature range: | -20~55℃ | -30~55℃ | -30~55℃ |
Charging temperature range | -10～45℃ | ||
Protection rating | IP20 | ||
