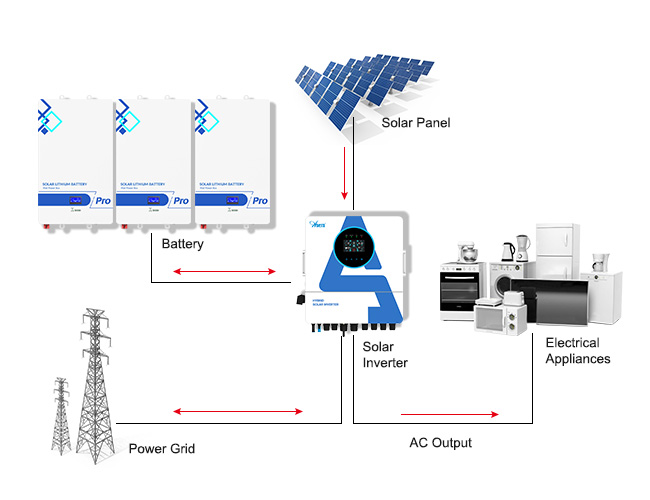

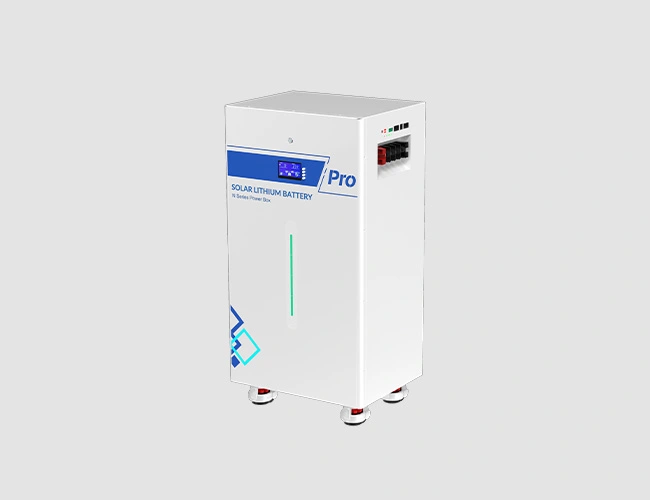

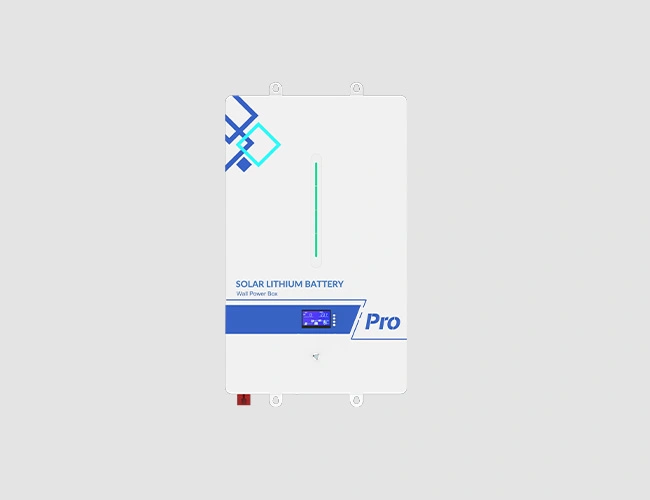

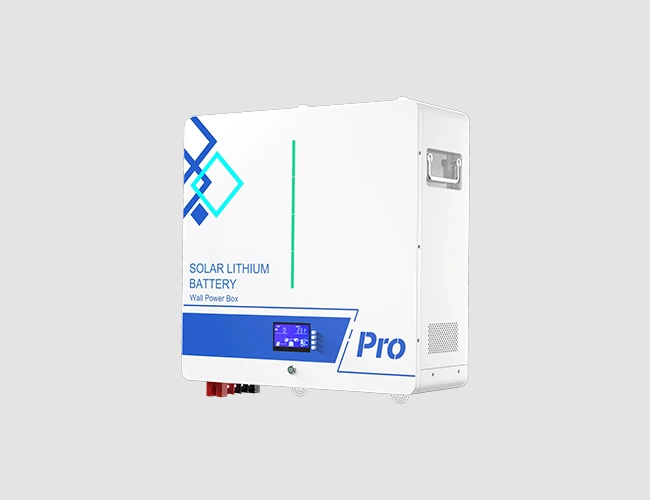

The Npor series 100ah 200ah 300ah 25.6V 51.2V wall-mounted solar LiFePO4 lithium battery is equipped with advanced brand new battery cells and a new protection board, offering enhanced performance and reliability. It features a new power and status indicator bar, allowing for clear monitoring of battery health and usage.

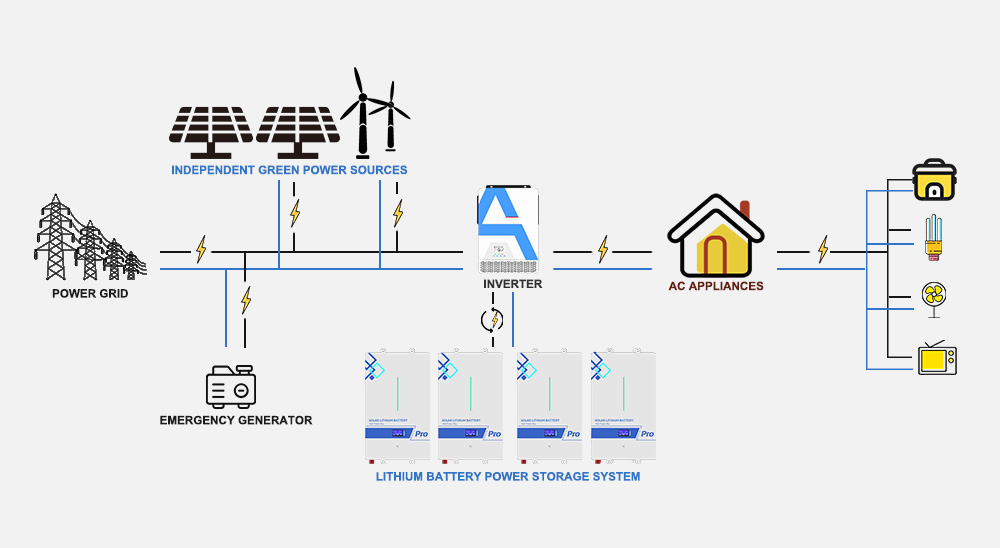

This wall-mounting lithium battery supports multiple communication interfaces, providing flexibility in integration. It is a perfect solar energy lithium battery for solar projects/industrial/residential use.
Highly compatible Battery Management System (BMS) ensures seamless operation and protection across various applications.
Adopts high-performance brand new lithium iron phosphate battery with high safety performance and long service life, more than 6000 cycles, ensuring long-term performance and reliability.
◆ Long service life over 8 years;
◆ Modular design, small size and light weight;
◆ One key switch machine, the operation is more convenient;
◆ Suitable for long-term charge and discharge cycles;
◆ Adopt multi-level energy consumption management;
◆ Multiple parallel machines, automatic address acquisition without manual operation;
◆ Support high-current charging and discharging;
◆ Front operation and front wiring are convenient for installation and maintenance;
◆ Adopt high-performance processors, international brand devices, and high reliability;

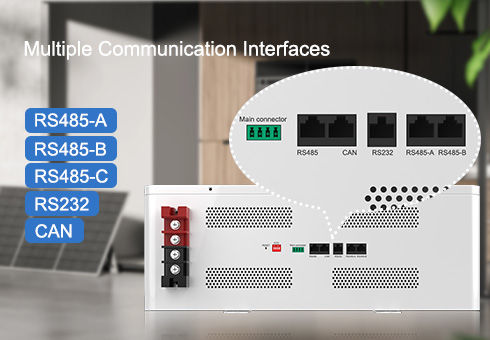

◆ Multiple communication interfaces: RS485, RS232, CAN;

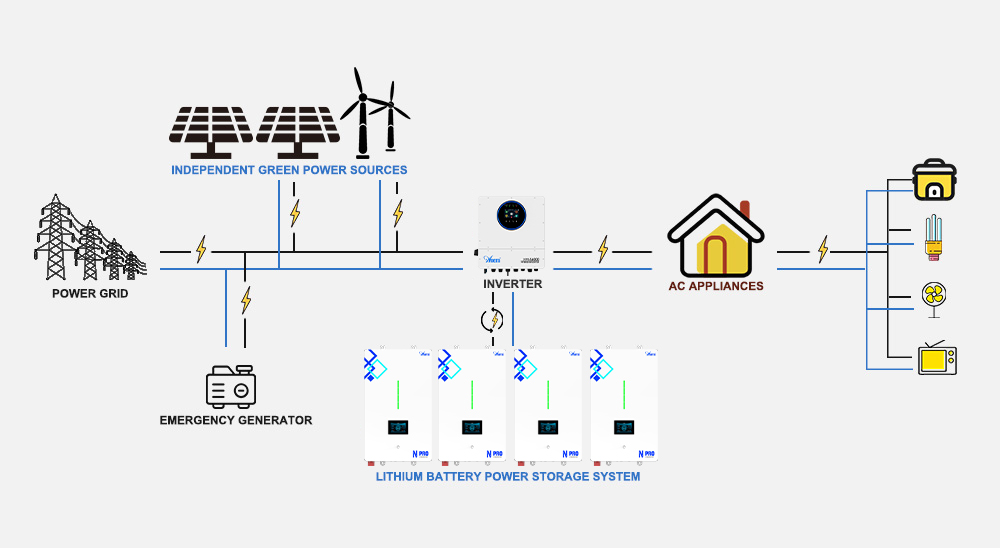

◆ Highly compatible BMS, seamless connection with energy storage inverter;
◆ Perfectly compatible with our inverter;
◆ Safety certification: CE, ROHS, UN38.3, MSDS, etc.

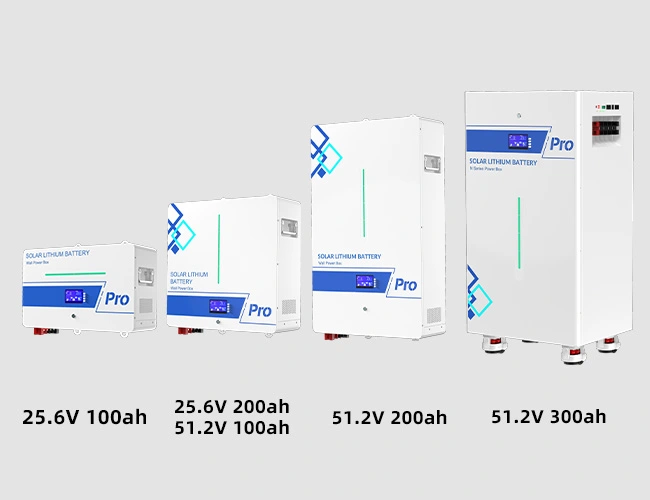

Model | AN-LPB-N-24100 | AN-LPB-N-24200 | AN-LPB-N-48100 | AN-LPB-N-48200 | AN-LPB-N-48300 |
Battery Type | LiFePO4 | ||||
Typical Capacity(AH) | 100AH | 200AH | 100AH | 200AH | 300AH |
Typical Voltage(V) | 25.6V | 25.6V | 51.2V | 51.2V | 51.2V |
Energy storage(Kwh) | 2.56Kwh | 5.12Kwh | 5.12Kwh | 10.24Kwh | 15.36Kwh |
Voltage Working Range(V) | 22.4-29.2V | 22.4-29.2V | 44.8-58.4V | 44.8-58.4V | 44.8-58.4V |
Working Temperature(°C) | Charge: 0-+55°C | ||||
Storage Temperature(°C) | -20-+40°C | ||||
Standard Charge Current(A) | 0.5C | ||||
Max. Charge Current(A) | 100A | 150A | 100A | 150A | 200A |
Max. Discharge Current(A) | 100A | 150A | 100A | 150A | 200A |
SOC Accuracy | <8% | ||||
Dimension(mm) | 485*300*179mm | 485*475*180mm | 485*475*180mm | 796*485*180mm | 815*455*350mm |
IP Grade | IP54 | ||||
Cooling | Nature | ||||
Communication | RS232, RS485, CAN | ||||
Certifications | CE, ROHS, UN38.3, MSDS | ||||
