3KW-5KW WIFI Monitoring Hybrid Solar Inverter

The wireless monitoring hybrid inverter is the first patented hybrid solar power inverter developed by Anern. Through the research of existing products on the market and the actual needs of the end customers, the AN-SCI02-Plus series of solar inverters have been independently developed. In terms of appearance design, the method of combining industry and fashion is adopted, turning a product that was originally industrialized into a stylish household appliance. In terms of electrical parameters, the exclusively developed solution makes our solar charging current and maximum input voltage far higher than existing products, which makes up for the shortcomings of existing products. At the same time, we can also realize mobile APP monitoring by adding a WIFI module and check system operation information at any time.

The Details of WIFI monitoring Hybrid Solar Inverter

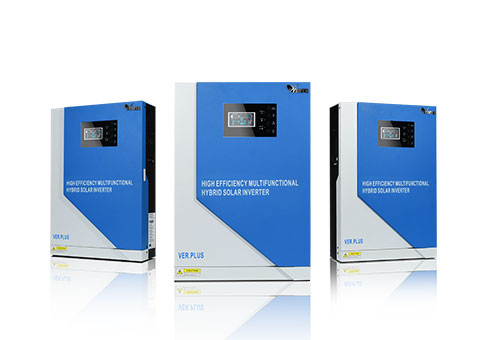

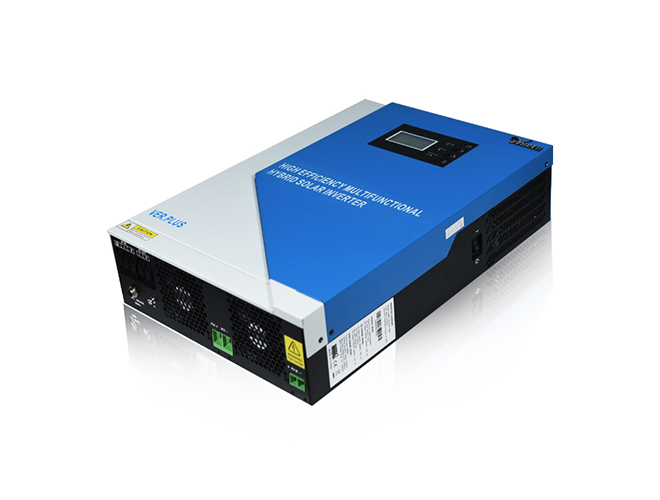

The exclusive appearance design distinguishes the product from general models in the market, allowing you to guarantee the profit of the product and avoid entering into price wars.

The exclusive appearance design distinguishes this hybrid solar inverter from general models in the market, allowing you to guarantee the profit of the product and avoid entering into price wars.

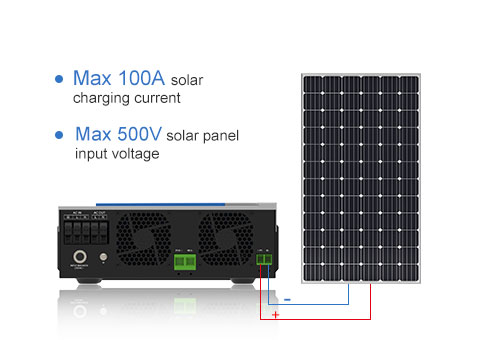

The maximum 100A solar charging current and the maximum 500V solar panel input voltage improve the current deficiencies of similar products on the market.

The maximum 100A solar charging current and the maximum 500V solar panel input voltage improve the current deficiencies of similar products on the market.

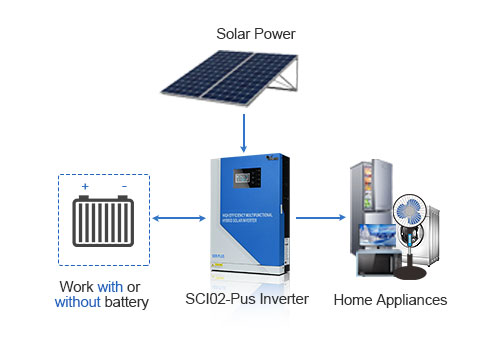

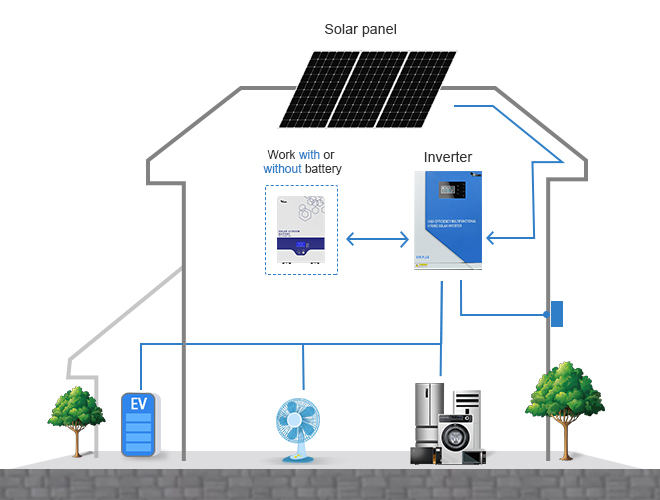

The electricity from the solar panel can directly supply power to the load without going through the battery, which reduces the demand for the battery and reduces the cost of the system.

The electricity from the solar panel can directly supply power to the load without going through the battery, which reduces the demand for the battery and reduces the cost of the system.

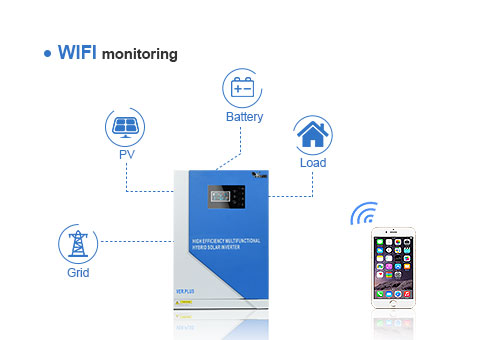

Optional WIFI monitoring function, you can check the running status of the system through APP at any time, and realize remote operation.

Optional WIFI monitoring function, you can check the running status of the hybrid inverter for solar system through APP at any time, and realize remote operation.

The Specification of WIFI Monitoring Hybrid Solar Inverter

Model

SCI02-PLUS-3500

SCI02-PLUS-5500

RATED POWER

3500W

5500W

INPUT

Voltage

230 VAC

Selectable Voltage Range

170-280 VAC (For Personal Computers)

90-280 VAC (For Home Appliances)

Frequency Range

50 Hz/60 Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode)

230VAC ± 5%

Surge Power

7000VA

11000VA

Efficiency (Peak) PV to INV.

97%

Efficiency (Peak) Battery to INV.

94%

Transfer Time

10 ms (For Personal Computers) ; 20 ms (For Home Appliances)

Waveform

Pure sine wave

BATTERY & AC CHARGER

Battery Voltage

24 VDC

48 VDC

Floating Charge Voltage

27 VDC

54 VDC

Overcharge Protection

33 VDC

63 VDC

SOLAR CHARGER

Maximum PV Array Power

5000 W

6000 W

MPPT Range @ Operating Voltage

120 ~ 500 VDC

Maximum PV Array Open Circuit Voltage

500 VDC

Maximum Charging Current

100A

Maximum Efficiency

98%

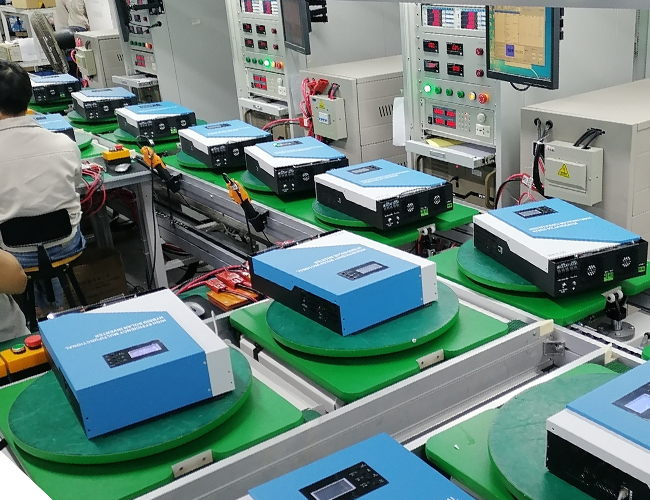

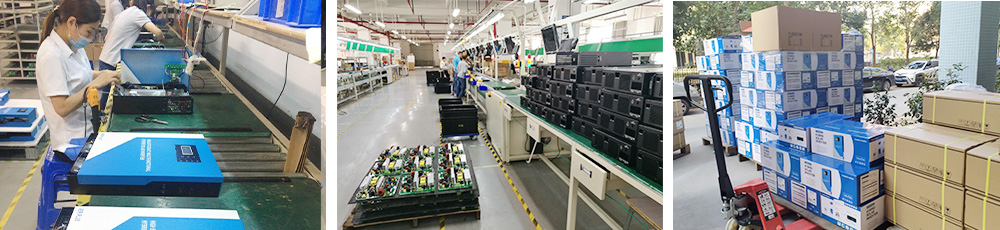

The Production of WIFI monitoring Hybrid Solar Inverter

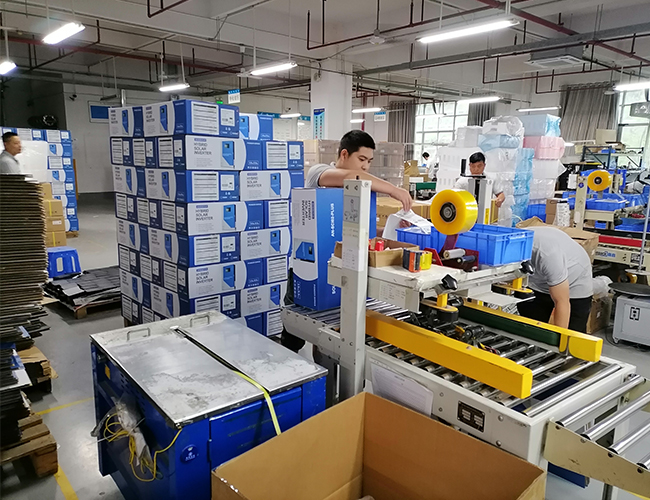

Anern's self-developed hybrid inverter is under intense production and shipment. The main circuit boards of this series of inverters are produced by ourselves, which ensures that the core technology does not leak out and guarantees the quality and stability of the products. Coupled with the difference and the design on the market, the products are exported to many foreign countries.

Anern solar inverter manual PDF
