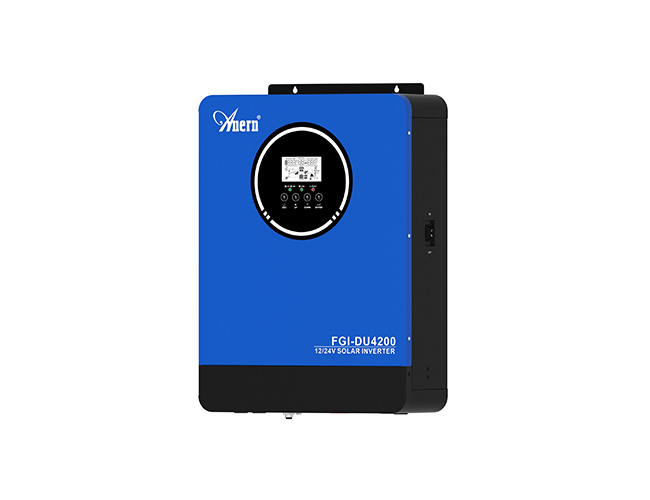

The AN-FGI series is a versatile DC to AC solar inverter designed for off-grid solar power systems. This model supports both 12V and 24V battery input, automatically detecting the battery system voltage upon startup. Based on the voltage level, the inverter delivers different rated output power, ensuring optimized performance and energy efficiency.
With its compact design, intelligent battery recognition, and high reliability, the AN-FGI mppt inverter is a cost-effective solution for residential cabins, RVs, small-scale solar projects, and backup systems.
◆ Work at 2 different voltages : 12VDC or 24VDC. lt can meet different loads needs of users
◆ Rated power is 2300W when work at 12VDC, ratedpower is 4200W when work at 24VDC
◆ Pure sine wave output inverter
◆ Solar energy and utility grid can power loads at the same time
◆ AC input is compatible with mains and generator
◆ Automatic restart function when mains power is restored
◆ Overload/Over temperature/ short circuit protection
◆ RS485 port Used for communication with BMS
◆ Built-in MPPT operating voltage range 55V~500V, open circuit voltage 500Voc
◆ WIFl remote monitoring (optional)
◆ RGB lights
Item. No. | AN-FGI-DU4200 |
Phase | 1-phase in /1-phase out |
Maximum PV Input Power | 4000W |
Rated Output Power | 2300W(12V)/4200W(24V) |
MPPT Voltage Range | 55-500Vdc |
Number of MPPT Trackers /Maximum Input Current | 1/18A |
Nominal Output Voltage | 220/230/240VAC |
Acceptable Input Voltage Range | 90-280 VAC |
Frequency Range | 50 Hz/60 Hz(Auto sensing) |
Nominal DC Voltage | 12/24Vdc |
Maximum Solar Charging Current | 100A |
Maximum AC Charging Current | 100A |
Maximum Charging Current | 100A |
DimensionDxWxH(mm) | 405x305x108 |
Net Weight (kg) | 6.7 |
